The remote controlled parking space lock barriers are used to secure and stop other vehicles from occupying your parking space. These locks are perfect to use both in your private parking space and commercial parking facilities. Theses locks integrates every possibility of automation to make itself user-friendly and convenient.
How remote controlled parking space lock barriers Work?
1. Activation:
- The user presses a button on the remote control or app to activate the barrier.
2. Barrier Movement:
- The motorized arm lifts to allow vehicle entry or exit.
3. Deactivation:
- After the vehicle passes, the barrier automatically lowers (or can be manually lowered via remote).
4. Safety Sensors:
- If an obstacle is detected, the barrier stops or reverses to avoid damage or injury.
Specifications
|
Product Name |
Solar Powered Remote Control Parking Space Lock Barrier |
|
Model |
TS-SP-119 |
|
Color |
Yellow + black or Customized |
|
Material |
Carbon Steel |
|
Dimension |
450*400*70mm |
|
Rise/Fall Running Time |
3 to 5S |
|
Rise/Fall Height: |
400mm/70mm |
|
Effective Loading Capacity |
Minimum 2000KG |
|
Remote Control Distance |
15 ~ 50M |
|
Rated Voltage |
DC 6V |
|
Static Current |
≤0.85mA |
|
Working Current |
≤1.5A |
|
Protection Grade |
IP67 |
|
Control Mode |
Remote Control; Auto-Sensing |
|
Power Supply |
Solar Energy |
|
Accessory List |
Instruction*1 |
|
Customization |
Arms, Base Shape and Size, Logo, Sticker Content, Weight, Color, etc. |
|
Net Weight: |
7.2KG |
|
Packing |
Plastic Bag + Carton Box + Pallet; One Piece per Carton |
Features, Functions and Advantages
Multiple automatic control methods
You can use the remote controller, group controller or auto-sensor to easily raise or lower the packing space lock barrier, and the control distance is 15 to 50 meters. No need to get out of the car to operate.
1.To operate max. 999 locks with a group controller
2. Full automatic down in 3-5s
3.Automatically lift the lock while car drives away by auto-sensor
4.Bluetooth APP control within 30 meters
Benefits
1. Convenience: Easy to operate remotely without leaving your vehicle.
2. Security: Prevents unauthorized access to parking spaces.
3. Durability: Built to withstand harsh weather conditions and frequent use.
4. Customization: Can be integrated with other security systems for enhanced functionality.
IP67 protection ratingRust and rain proof
Strongly Resistant to Pressure
Minimun 2000KG load capacity
Never damage the tire

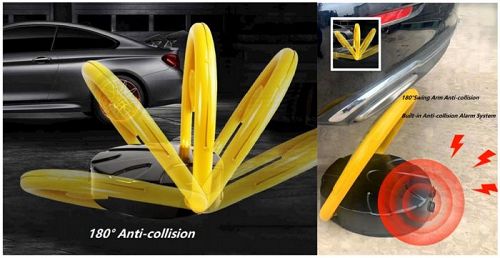

180 Degree Anti-collision
Built-in Smart Aarm Anti-Theft Device

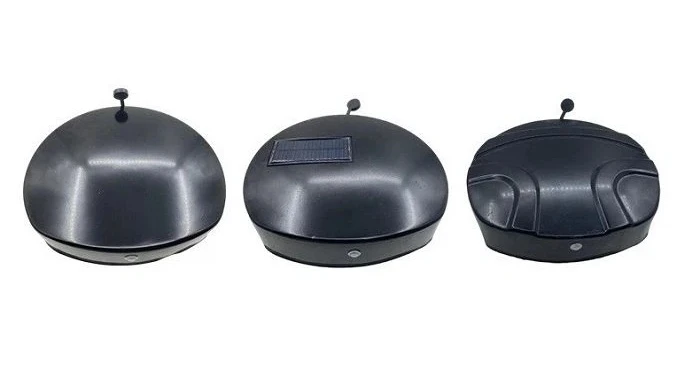

Final Products
Installation and Maintenance Notice
- Installation:
- Requires a stable foundation, often bolted to the ground or embedded in concrete.
- Electrical wiring or solar panel setup may be needed.
- Maintenance:
- Regularly check the motor, sensors, and barrier arm for proper functioning.
- Clean the barrier and ensure reflective strips are visible.
- Lubricate moving parts to ensure smooth operation.
